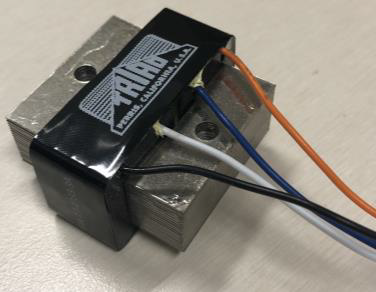

Triad's high reliability microphone output transformers provide the durability and precision required in today's demanding designs. These transformers are available for a wide variety of applications.
Unit of Measure

Check Stock

Click here to check stock >>

 N/A

Electrical Specifications at 25 Degree Celsius (ºC) Temperature

Power Level

 N/A 7.5 mW

Primary Impedance

 N/A 8000 Ohm

Secondary Impedance

 N/A 200 Ohm

Maximum Direct Current (DC) Primary Resistance

 N/A 700 Ohm

Maximum Direct Current (DC) Secondary Resistance

 N/A 17.6 Ohm

Overall Turn Ratio

 N/A 6.4:1.0

Operating Temperature

 N/A -40 to 80 ºC

Storage Temperature

 N/A -40 to 80 ºC

Pri-Sec Hipot Test (Pri-Sec)

 N/A 500 VRMS for 1 Second

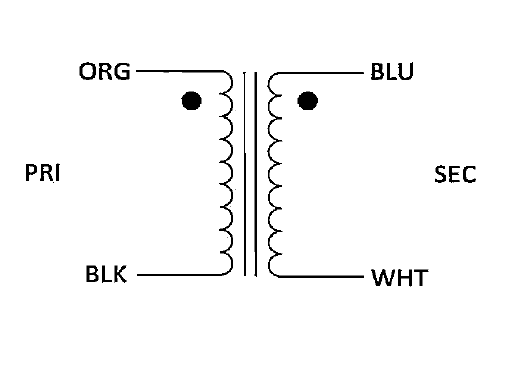

Leads

 N/A #28 UL1007, 80 ºC, 300 V

RoHS Compliance

RoHS Compliance

 N/A As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.

Note

Note

 N/A Upon printing, this document is considered "uncontrolled". Please contact Triad Magnetics website for the most current version.
