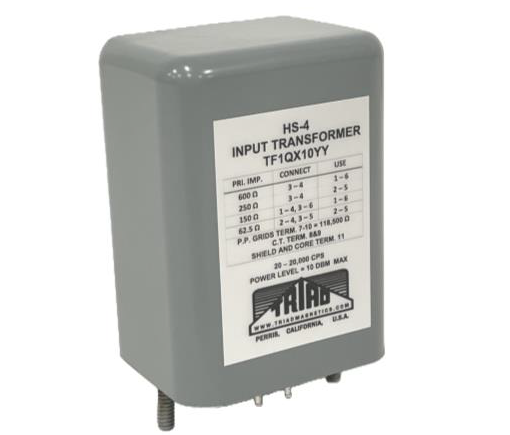

Triad's HS-4 Input Audio Transformer provides the durability and precision required in today’s demanding designs. Mu-Metal case construction for magnetic field immunity and up to 95 dB Hum reduction. Ample turns ratios to accommodate source to load impedance matching. Wide range power handling capacity to deliver full power without distortion within ± 3dB. Applications include: Signal Pre-Amplification, Impedance Matching, Inter-stage Isolation, Signal Level step up/down. Dependable hermetically sealed construction with low temperature rise and high heat conductivity.

Unit of Measure

Check Stock

Click here to check stock >>

 N/A

Specifications

Applications

 N/A

Universal Line or Mike P. P. Class A Grid.

Note for Primary Impedance

 N/A Balanced Center Tap. (600 and 250 Ohm)

Note for Secondary Impedance

 N/A Center Tap

Frequency Response Range

 N/A 20 to 20000 Hz

Shielding

 N/A P-3 - Two nickel alloy shields interleaved with one heavy copper shading ring 70 db. reduction in pickup.

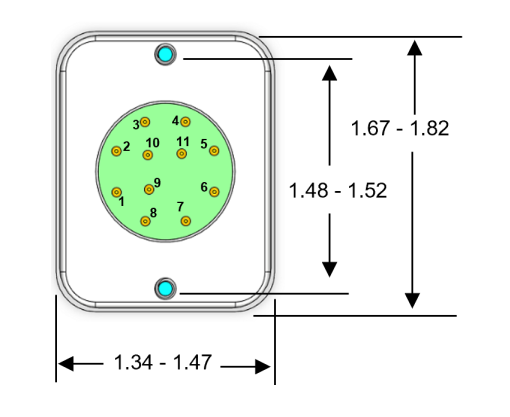

Case

 N/A GP-4

Electrical Specifications at 25 Degree Celsius (ºC) Temperature

Primary Impedance

 N/A 62.5 O150 O250 O600 O

Secondary Impedance

 N/A 118500 O

Overall Turns Ratio

 N/A 1:14

Maximum Input Level

 N/A 10 dBM

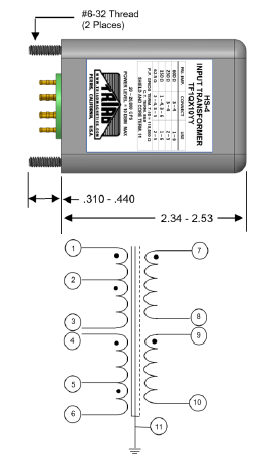

DCR 1-2

 N/A 12 Ω

DCR 2-3

 N/A 20 O

DCR 4-5

 N/A 20 O

DCR 5-6

 N/A 12 Ω

DCR 7-8

 N/A 2300 O

DCR 9-10

 N/A 2300 Ω

Power Level

 N/A 10 dBM

Additional Information

Additional Information

 N/A

Avoid redesign - Use Triad HS and HSM transformers in military prototypes

Triad HS and HSM series transformers are designed to meet MIL-T-27 requirements. Most of these transformers use standard MIL-T-27 case sizes. Exceptions are GP cases or any cases showing a Bw dimension, which may be classified as MIL-T-27 'YY' cases. Equipment using these transformers need not be redesigned to submit for military approval. The basically good design factors which are necessary to meet MIL-T-27 standards for performance ensure longest life in any class of service.

These transformers are permanently marked with electrical and test data as specified in MIL-T-27. All are "Climatite" treated, use sturdy TRIAD terminals and are beautifully finished in gray enamel.

Note

Note

 N/A

Low frequency loss will result from unbalanced DC in windings other than where specified.
